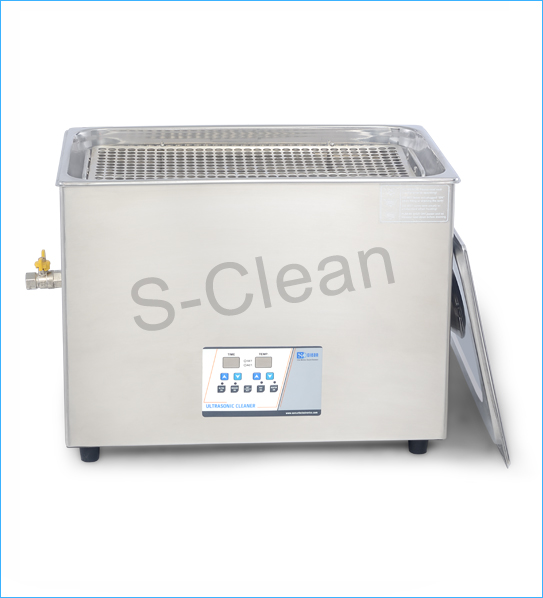

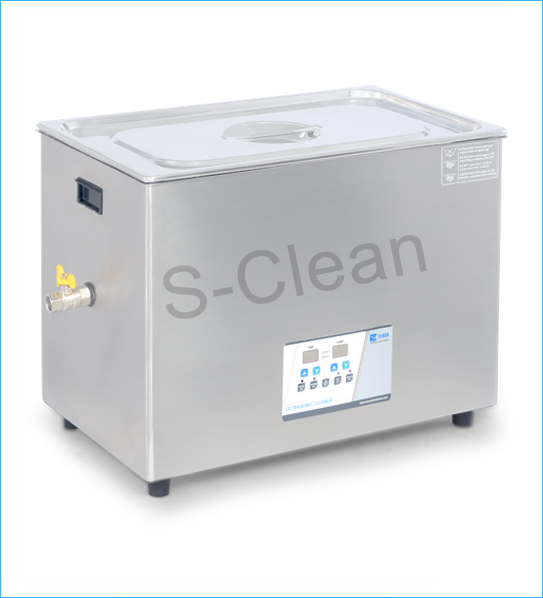

M -14 US Micro Plus Model




Specification
Model : M-14 US MICRO PLUS MODEL
No. of chambers : One
Tank size : 500 x 300 x 100 mm ( l x w x h )
Encloser size : 525 x 320 x 345 mm ( l x w x h )
Chamber material : SS 304
Tank Enclosure : SS 304
Basket : SS 304
Total Solvent Capacity : 14 Ltrs. Approx.
Power Output
( Ultrasonic)
: 300 Watts
Power Input : 230 VAC
Timer : Digital Display with 0-99 min settable.
Frequency : 33 khz ± 3 Khz.
Transducers : Imported make PZT type bonded at the bottom of the tank with
weld bond technique.
Ultrasonic Generator : Advanced latest MOSFET based SMPS
Heater : 200W for efficient heating
Digital Temp Controller : Digital temperature controller with setting max-60°C
Solvent : Aqua/Solvent Based
Accessories : SS 304 lid, SS 304 Basket, Drain valve & User friendly
operation manual.
