Complete multi-stage ultrasonic cleaning systems engineered to your specification - from single-tank bench-top units to fully automated 5-stage production lines with wash, rinse, passivation, and drying. IEC certified, custom-built, exported worldwide from Ambarnath, Maharashtra.
An ultrasonic cleaning system is a complete, integrated cleaning solution that uses high-frequency sound waves (20,000 to 130,000 Hz) to generate acoustic cavitation β millions of microscopic bubbles that implode against every surface of submerged parts simultaneously. This removes oils, grease, carbon, scale, flux, biological contamination, and fine particles from even the most complex geometries β blind holes, internal passages, threads, and fine surface textures β in a fraction of the time required by manual cleaning.
Unlike a basic single-tank cleaner, an ultrasonic cleaning system refers to a multi-stage configuration β typically 2 to 5 tanks in sequence β that takes parts through a complete wash, rinse, and drying cycle. Samarth Electronics designs and manufactures these complete systems for automotive, pharmaceutical, medical, electronics, textile, and general industrial customers across India and internationally.
Every system we build is custom-engineered: tank dimensions are designed around your largest part, frequency is selected for your contamination and substrate, chemistry compatibility is confirmed, and automation level is matched to your production throughput. No two systems are identical β because no two cleaning applications are.

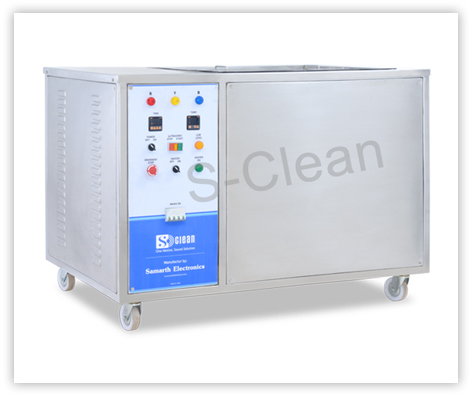

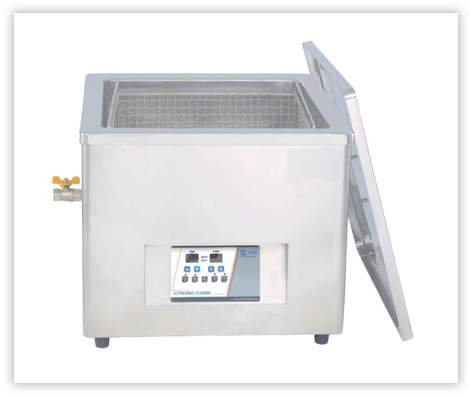

One ultrasonic cleaning tank with heating, timer, and temperature control. Suitable for light industrial applications, laboratory cleaning, and low-volume production where a separate rinse is handled manually or downstream. Available in 1L to 500L+ custom tank sizes.
Ultrasonic wash tank followed by an ultrasonic or static rinse tank. The rinse removes detergent residue from the wash stage, preventing carry-over contamination. Suitable for most industrial applications where a clean, residue-free surface is required.
The most common industrial configuration. Ultrasonic wash β clean water rinse β hot-air drying. Parts exit the system completely clean and dry, ready for immediate assembly, packaging, or inspection. Used widely in automotive component, medical device, and precision manufacturing.
For applications requiring double rinse (DI water final rinse), passivation (anti-rust treatment), or sequential chemical treatment. Used in pharmaceutical manufacturing, aerospace component cleaning, and precision medical device production where the highest cleanliness standards apply.

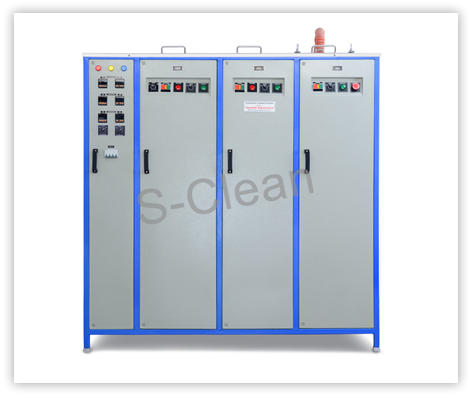

PLC-controlled systems with automated basket transfer between stages, programmable cycle parameters, data logging, and HMI touchscreen. Material handling hoists, conveyor integration, and dunking mechanisms available. Designed for high-volume, operator-independent production environments.
20 kHz to 68 kHz β matched to your contamination type and substrate material for optimal cleaning without damage.
Corrosion-resistant stainless steel tanks with reinforced construction. SS316L available for pharmaceutical and acid-compatible applications.
Digital PID temperature controllers with calibrated thermocouples. Range: ambient to 90Β°C. Heated for optimal cavitation and chemistry action.
Frequency sweep eliminates standing waves for uniform cleaning throughout the entire tank volume. Digital power adjustment 20β100%.
Hot-air blower drying, recirculating oven, or air-knife blow-off β configured to your part geometry and throughput requirement.
Manual, semi-automatic (motorised basket lift), or fully automatic PLC-controlled with HMI, data logging, and alarm management.
All electrical components IEC certified. CE-compatible designs for European buyers. Full technical documentation supplied.
Tanks lined or constructed to handle alkaline, acid, and neutral chemistry. Polypropylene and PVDF lining options for aggressive applications.
| Parameter | Specification |
|---|---|
| Frequency | 20 kHz / 28 kHz / 33 kHz / 40 kHz / 68 kHz (specify at order) |
| Tank capacity | 1 litre to 5,000+ litres (custom) |
| Number of stages | 1 to 5 stages (wash / rinse / passivation / dry) |
| Tank material | SS304 (standard) / SS316L (pharma / acid) |
| Heating temperature | Ambient to 90Β°C (adjustable, PID controlled) |
| Generator power | 100W to 10,000W+ (matched to tank volume) |
| Power density | 10β80 W/litre (application-specific) |
| Timer | Digital: 1 minute to 99 hours |
| Automation | Manual / semi-automatic / fully automatic PLC |
| Power supply | 230V/50Hz (India/UAE/EU) / 110V/60Hz (USA) / custom |
| Certification | IEC certified; CE-compatible designs available |
| Lead time | 3β8 weeks (depending on size and complexity) |

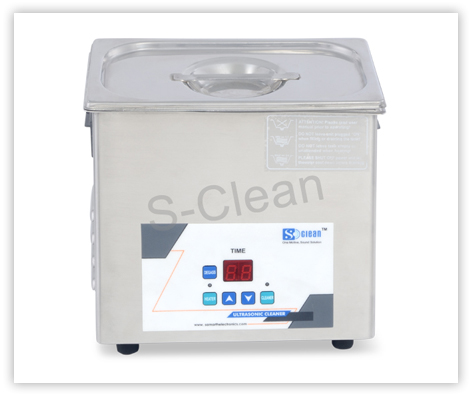

Ultrasonic cleaning systems from Samarth Electronics are used across every manufacturing and processing sector in India and internationally. From small 5-litre bench-top systems for dental clinics and jewellery workshops, to 2,000-litre 5-stage automated lines for Tier-1 automotive component manufacturers β every system is engineered for the specific application.
Samarth Electronics exports multi-stage ultrasonic cleaning systems to industrial buyers, distributors, and trading companies in 12+ countries. Every export system is manufactured at the buyer's destination voltage, includes IEC certification, CE Declaration of Conformity (for European buyers), and ships with complete technical documentation.
Located 80 km from Nhava Sheva (JNPT) β India's largest export port β we offer direct weekly sailings to Jebel Ali, Hamburg, Los Angeles, and all major global ports. FOB Mumbai and CIF destination pricing available.
Request Export QuotationManufacturing precision ultrasonic cleaning systems since 2006 β thousands of systems delivered across India.
Full IEC electrical certification. CE-compatible designs for European export. Accepted globally.
Every system built to your exact specification β no catalogue compromises.
Material certs, calibration records, IQ/OQ protocols, wiring diagrams β everything QA needs.
Spare parts, service, and remote technical support for every system we manufacture.
No distributor markup β manufacturer-direct pricing that is 40β60% below European brands.
Share your part dimensions, contamination type, production volume, and destination country β and our engineers will design the right system with a full quotation within 24 hours.
